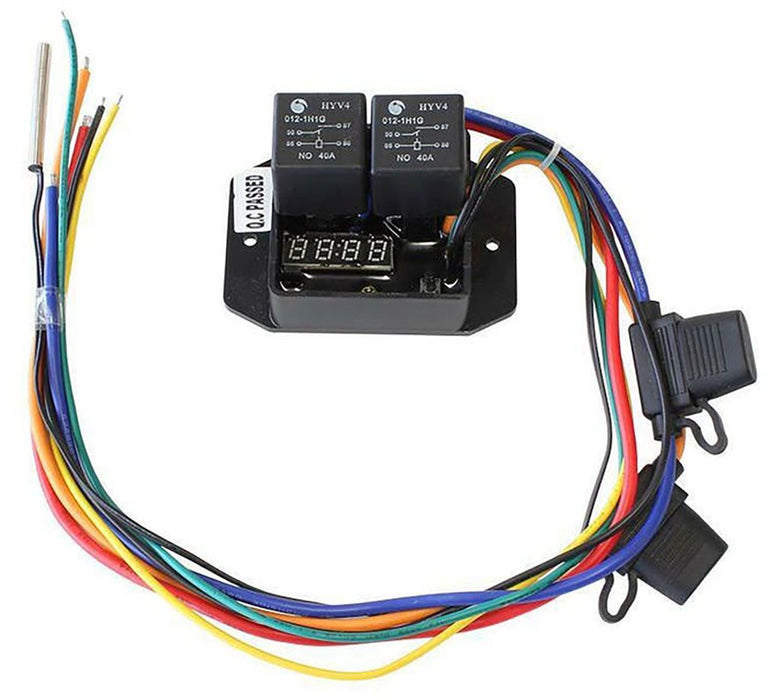

Digital Thermatic Fan Switch DC0444

Use with electric thermo fans & Electric Water Pumps

DC0444

0444

Davies, Craig Pty Ltd very own designed Digital Thermatic Fan Switch Kit can be used with our Thermatic Fans, EWP's & competitors Fans. It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF). The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, no need to cut hoses. This switch is operated thermally & also when the air conditioning is in operation. Simply set the temperature by pressing the set button. It can run 1 or two fans. The second fan (if applicable) will start 10 seconds after Fan #1 runs. The fans will operate until the air temperature is reduced by 1 degrees (C) from the set temperature. To convert temperature reading from Centigrade to Fahrenheit, simply remove the plastic cover from the Jumper Pins by hand located below the LED screen. SPECIFICATION Max voltage: 15V Max current: 50A Relay setup: Dual relay Speed: Single speed - 10 sec. delay to start up the second fan Applications: Suitable for single and dual fan applications Temperature Display: LED digital temp display – actual temp + set temp Temp Display: Centigrade+ Fahrenheit Temp settings: 40°c to 110°c (104°F to 230°F) Temp setting: Push Button Circuit type: Pre-programmed micro controller Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe Dimensions: 95x65x56 mm
