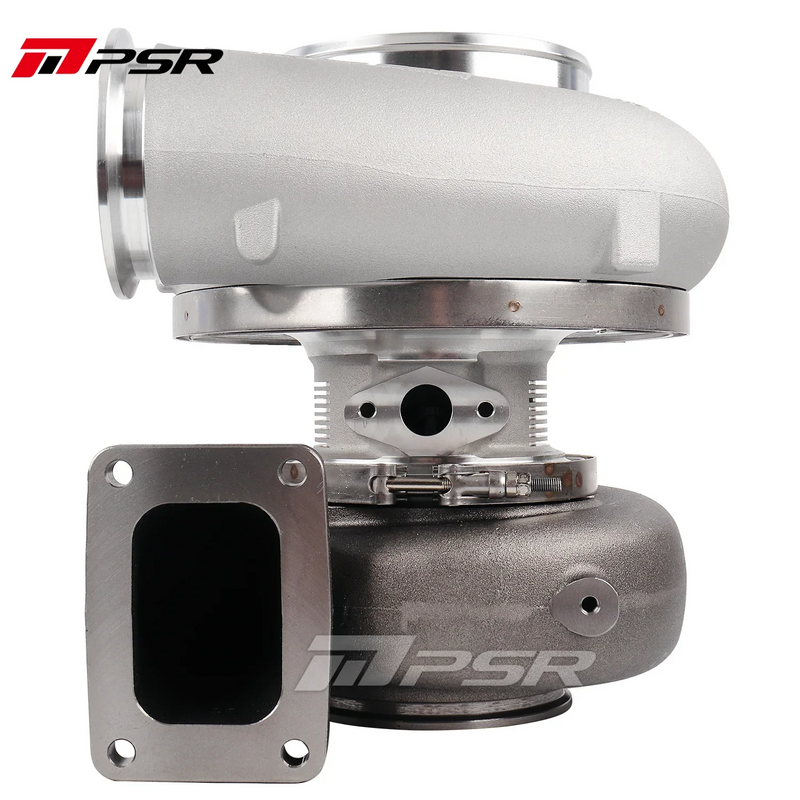

PULSAR PRO98 HP Rating 2000

PULSAR TURBOS ARE SHIPPED DIRECTLY FROM PULSAR NZ AND CAN TAKE UPTO 8 DAYS FOR DELIVERY IF NOT LOCALLY STOCKED - CONTACT US IF YOUR ORDER IS URGENT

• • • Dual ceramic ball bearing system provides optimal turbo response &
      better durability by reducing the shaft-motion

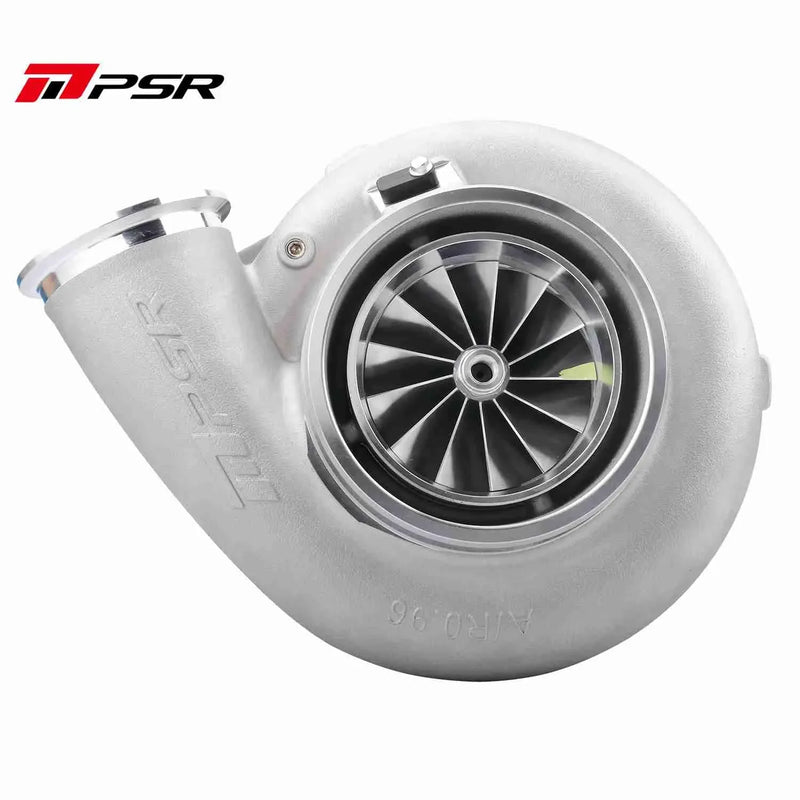

    • 13 Blade G-Aero billet compressor wheel 88mm inducer produces up to 2000 hp

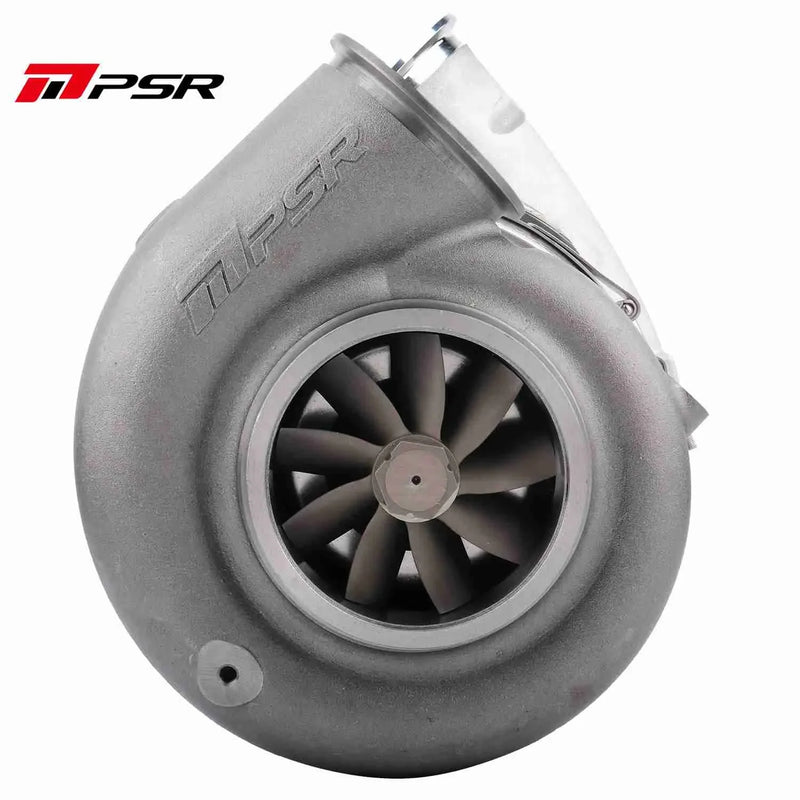

    • 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
    • Fin cooled aluminum center housing, lighter weight
    • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
    • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
    • Oil Feed Fitting needs to be bought separately
    • • Compressor Wheel: 88.3*133.5*141.8mm
      • Turbine Wheel: 118*112mm
      • Compressor Inlet: 6” Hose
      • Compressor Outlet: 4” V-band
      • Compressor Housing A/R: 0.88
      • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
      • Turbine Outlet: 5” V-Band
      • Turbine Housing A/R: 1.09/1.25/1.41
      • Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
      • Oil Drain: See graph below(OIL OUTLET)
