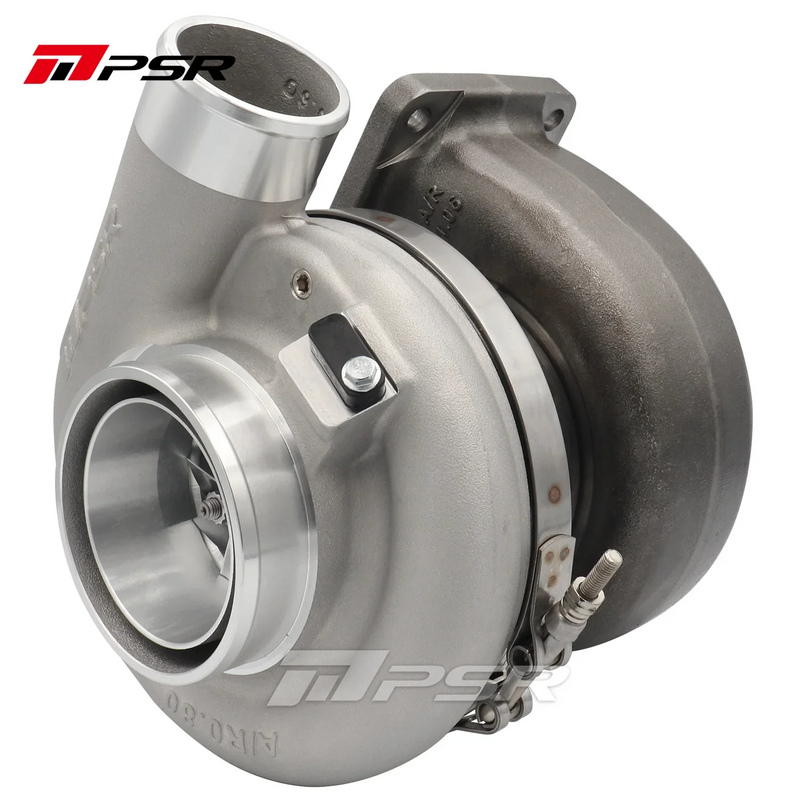

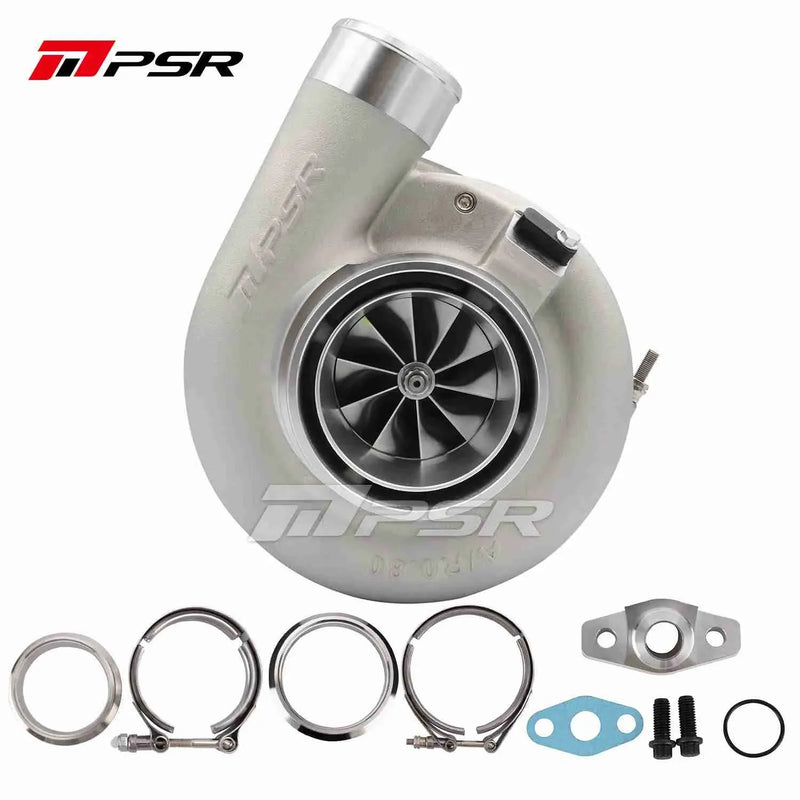

Pulsar 7170G Dual Ball Bearing Turbocharger HP Rating 1150

PULSAR TURBOS ARE SHIPPED DIRECTLY FROM PULSAR NZ AND CAN TAKE UPTO 8 DAYS FOR DELIVERY IF NOT LOCALLY STOCKED - CONTACT US IF YOUR ORDER IS URGENT

• Dual ceramic ball bearing with steel cage provides optimal turbo response &
  better durability by reducing the shaft-motion
• 71mm inducer 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
• Water fittings included with the super core
• 3 Options in Turbine Housing
• Suitable engine size: 2.0-6.0L
• HP rated at 1150HP at the flywheel
• • Bearing Systems: Dual Ceramic Ball Bearing
  • Compressor Wheel: 71*88mm
  • Turbine Wheel: 77*70mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: V-band or T4 divided
  • Turbine Outlet: 3.5”or 4″ V-band (see details after housing selection)
  • Water Ports: -6AN
  • Oil Feed(excl’): Flange Required(Recommended size: -4AN Std T4 Flange )
  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’
