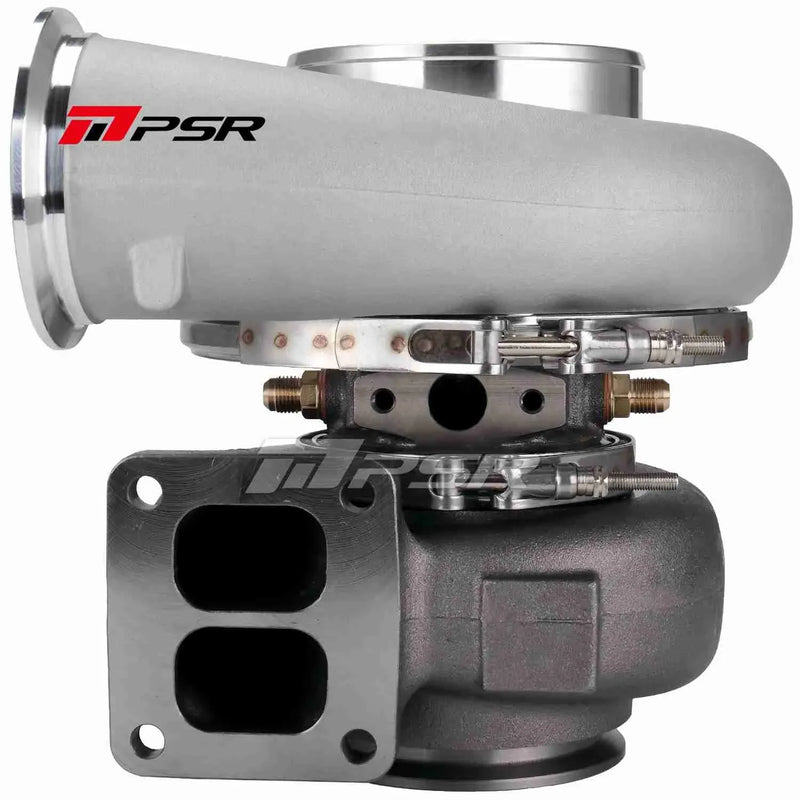

Pulsar 7782G Dual Ball Bearing Turbocharger HP Rating 1500

PULSAR TURBOS ARE SHIPPED DIRECTLY FROM PULSAR NZ AND CAN TAKE UPTO 8 DAYS FOR DELIVERY IF NOT LOCALLY STOCKED - CONTACT US IF YOUR ORDER IS URGENT

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion

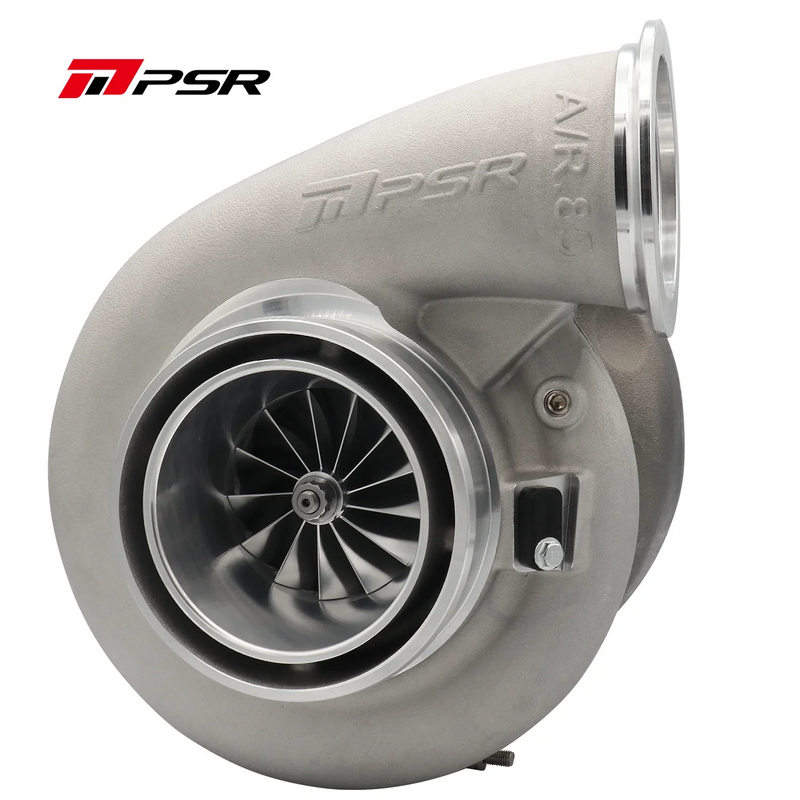

• 13 Blade G-Aero billet compressor wheel with extended tapered tip technology

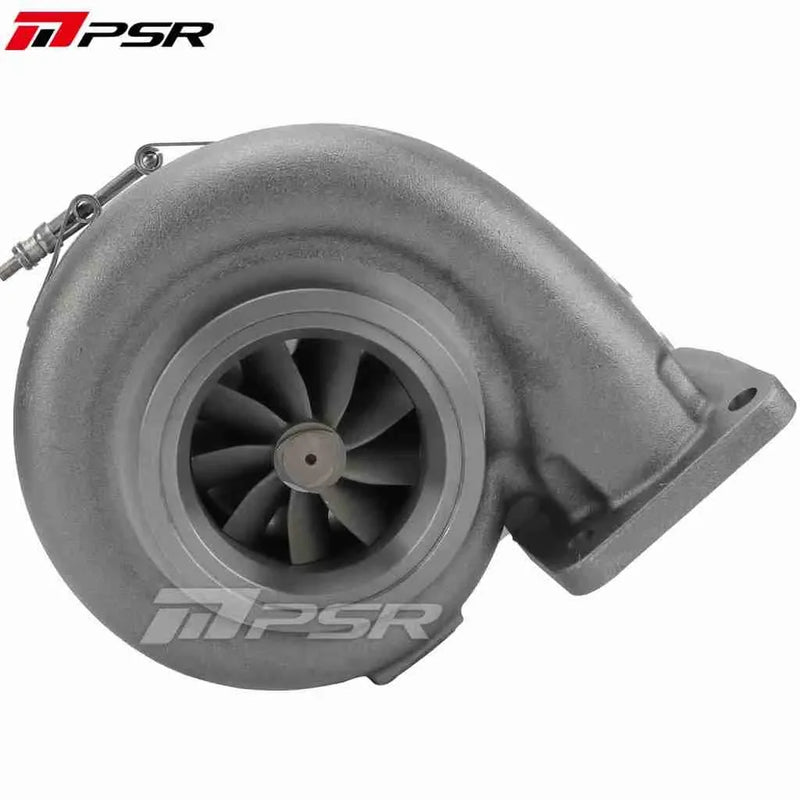

• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
• Water fittings included with the super core
• 8 Options in Turbine Housing
• HP rated at 1500HP at flywheel
• Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting needs to be bought separatel
• • Compressor Wheel: 76.6*109.2mm
  • Turbine Wheel: 89*81.6mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: 3″ V-Band
  • Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
