Aeroflow Turbo Water and Oil Feed Support Bracket – Ford XR6 (AF64-4369) – AF64-4369

Aeroflow Turbo Water and Oil Feed Support Bracket – Ford XR6 (AF64-4369)

SKU: AF64***69
BRAND: AEROFLOW
$59.20 - $59.20
$59.20
$59.20 - $59.20
$59.20
Stock Status: ⏳ Available — ships from supplier, allow 2–5 working days
This item may not be kept in physical stock and may be shipped directly from our supplier. Contact us before purchasing if you need an exact ETA.

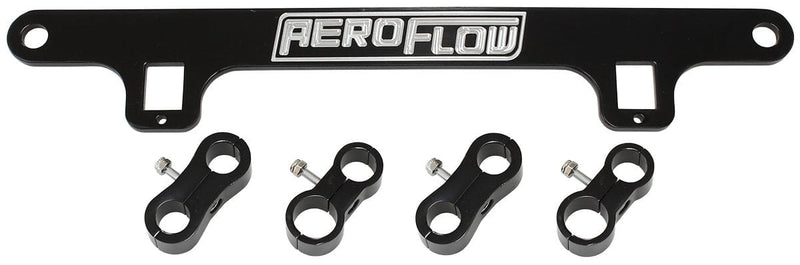

Turbo Water and Oil Feed Support Bracket – Ford XR6

Brand: AEROFLOW
Part Number: AF64-4369

Description:

The Aeroflow Performance turbo and water line support bracket is designed for the turbocharged Ford Barra motor to secure the turbo oil and water feed lines from falling onto the drive belt. A quick and easy bolt on design that utilises the 2 front timing case bolts on the front of theengine. This kit comes with two sets of different sized billet separators to suit mostcustom applications. One set is stepped with I. D's of 11.1mm and 14.2mm and the second set has an I. D. of 14.2mm on both sides.


Additional Specifications:

Dimensions:

Overall Length - 270mm (10-5/8”).

Overall Width - 44mm (1-47/64”).

Thickness - 4mm (5/32”).

Includes two different setsof dual billet separators:

AF156-07-09BLK (11.1mm and 14.2mm internal diameter)

AF156-09BLK (14.2mm internal diameter
